6×9mm Ultra-Slim Recessed LED Cabinet Light — Product Introduction
Product Overview
Revitalize your cabinetry with a discreet lighting effect.
This 6×9mm ultra-slim recessed LED cabinet light is designed for seamless, dot-free linear illumination, remaining virtually invisible after installation. It fits into a recess just 6mm wide and 10mm deep, making it perfect for installation on standard shelf edges, cabinet panels, and various woodwork components.
It features a solder-free, plug-and-play connection system. Simply cut to size, connect, plug into the power supply, and switch it on.
Three Key Features
Feature 1: Ultra-Narrow Light-Emitting Surface
The light-emitting surface is only 4mm wide—thinner than a standard pencil. When recessed into a 6mm-wide channel, only a clean line of light is visible, while the fixture body itself remains completely hidden. There are no visible LED dots or visual clutter, resulting in a pure, continuous linear lighting effect.
Feature 2: Solder-Free, Plug-and-Play Power Connection
All connections are made using solder-free, press-fit connectors. Simply cut the ultra-narrow light to the desired length, attach a solder-free connector at the cut point, and connect to a 12V power supply to illuminate. This makes it an ideal choice for DIY homeowners, shop fitters working under tight deadlines, and exhibition installers who need rapid setup without waiting for an electrician.
Feature 3: Cuttable to Any Length
This 1-meter-long light strip can be cut at any point. After cutting, simply attach a solder-free connector to the new end and connect the power. There is no material waste, no minimum cut-interval restriction, and no need for special tools. This means a single 1-meter strip can meet the lighting needs for a 750mm bookshelf, a 400mm wine rack, and a 300mm display niche all at once.
Specifications

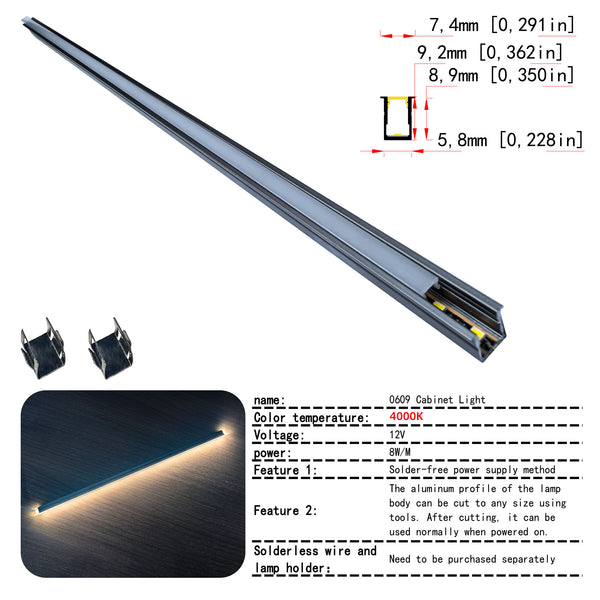

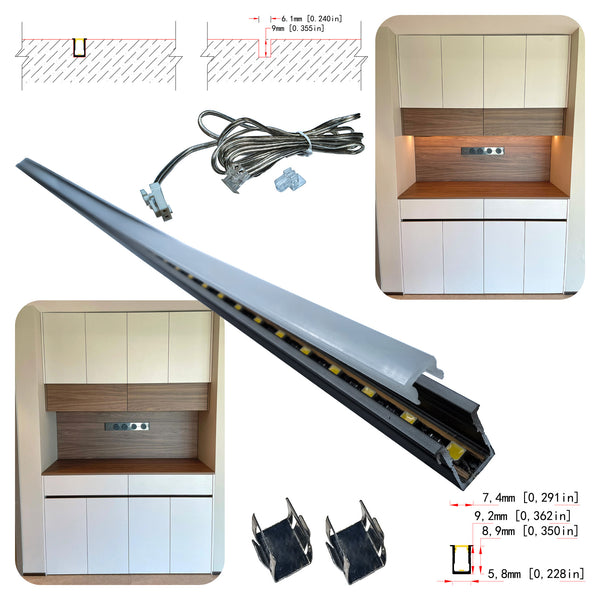

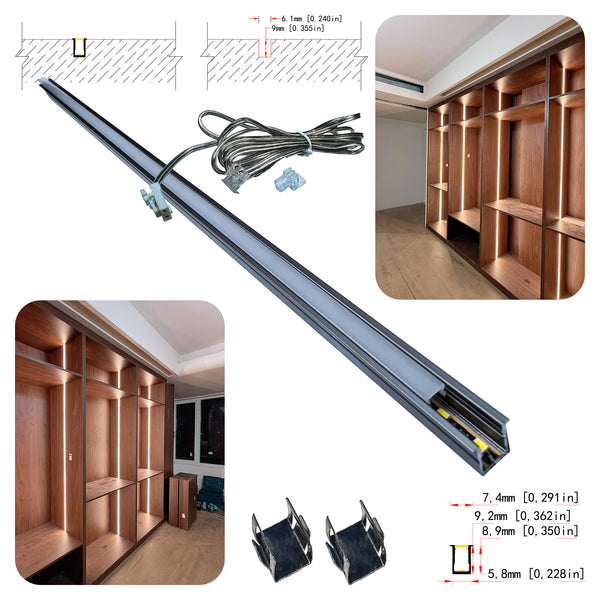

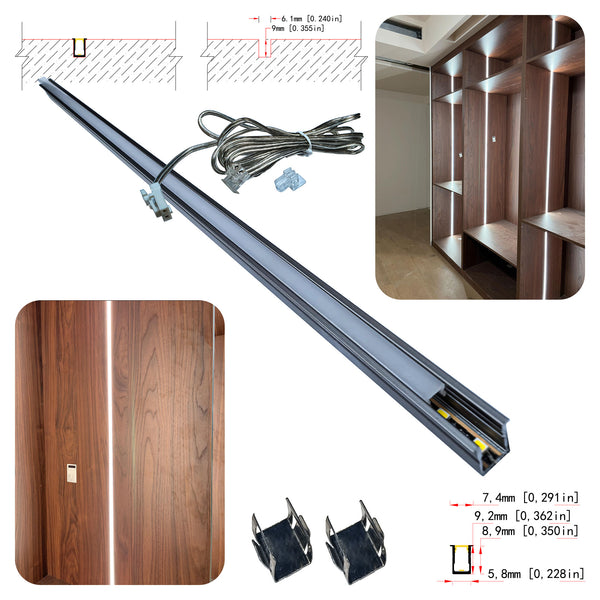

Product Dimensions: Width 6mm, Height 9mm, Length 1000mm. Required Recess Dimensions: Width 6mm, Depth 10mm. Operating Voltage: DC 12V. Color Temperature Options: 3000K Warm White or 4000K Cool White. Connection Method: Solder-free press-fit connector; no soldering required. The light strip can be cut to length at any point. Installation Method: Recessed (embedded into shelves or panels). Features a built-in milky diffuser for uniform, dot-free illumination. Rated Lifespan: Over 50,000 hours. Compliance Standards: AS/NZS 60598.1; Low-voltage 12V, safe for indoor use.
Application Scenarios
Residential Applications

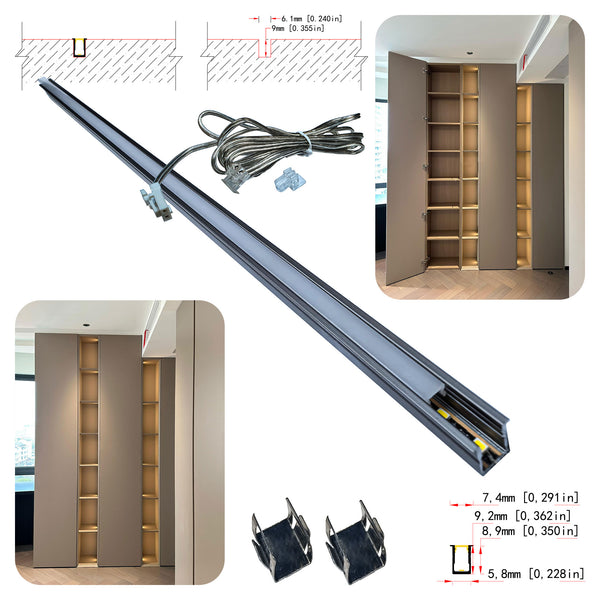

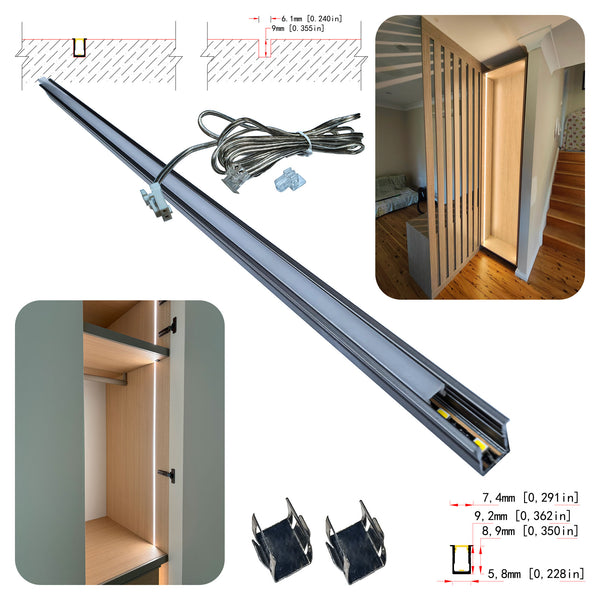

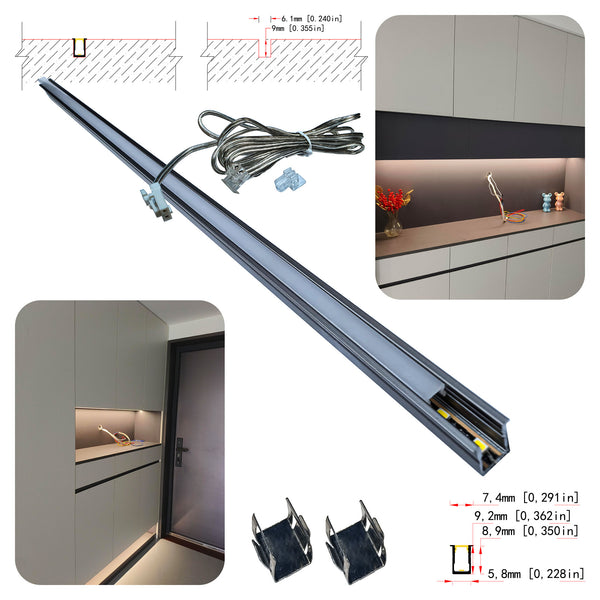

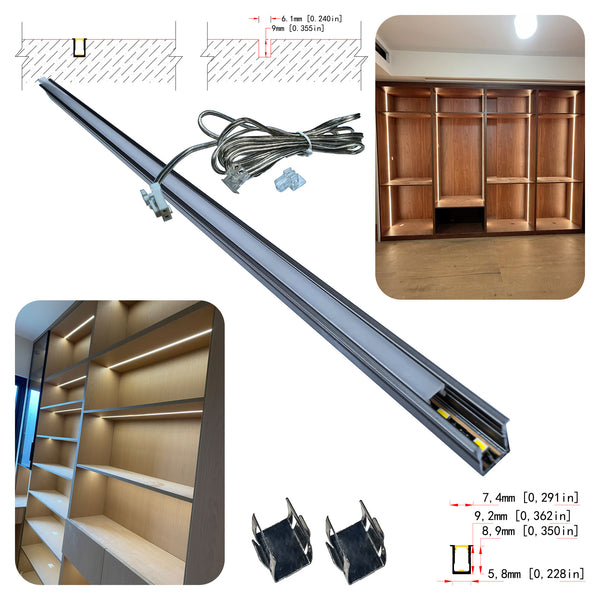

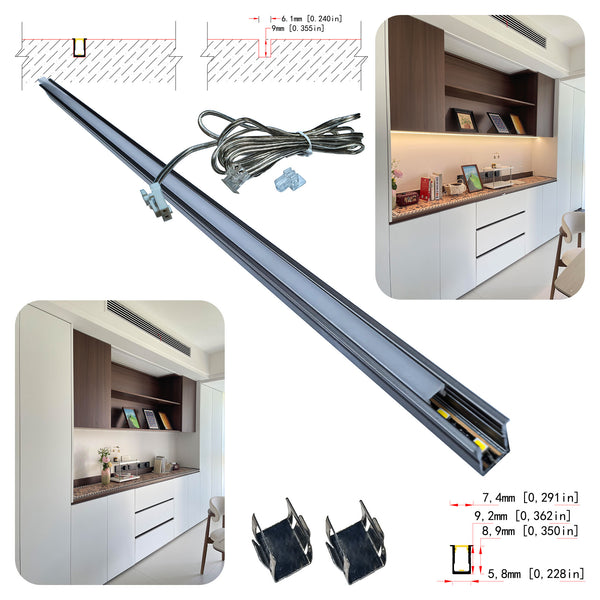

Kitchen: Installed under overhead cabinets to provide functional task lighting for countertops. Wardrobes and Walk-in Closets: Installed along shelf edges to ensure visibility of clothing while avoiding harsh, direct overhead glare. Bookcases and Studies: Recessed into the underside of shelves to provide reading light and highlight book displays. Wine Cabinets: Creates ambient lighting that accentuates wine labels without the risk of heat damage. Pantries: Provides practical lighting for food storage shelves. Bathroom Cabinets: Used for under-shelf lighting in mirrored cabinets (dry areas only).
Commercial Applications
Showrooms and Galleries: Recessed into display cases to illuminate artwork and products. Esports Arenas and Gaming Lounges: Creates ambient lighting for shelves and counters. Supermarkets and Retail Stores: Installed along shelf edges to highlight merchandise features. Jewelry and Watch Displays: Provides precise accent lighting for high-value items. Hotels and Hospitality Venues: Illuminates wardrobes, minibars, and headboard shelves. Office Spaces: Provides lighting for reception desks, filing cabinets, and lounge area shelving.
Installation Guide
Tools and Accessories Required: LED cabinet light (1m), solder-free connector and end cap (available as separate options), 12V DC power supply (not included; please select appropriate wattage), laminate trimmer/router with a 6mm straight bit (or a grooving saw with a guide rail), tape measure, pencil, and utility knife or scissors.
Step 1 – Measure and Mark. Measure the underside of the shelf or cabinet panel. Mark the slot location with a pencil. Ensure the slot runs parallel to the shelf edge for even light distribution.
Step 2 – Cut the Recessed Slot. Using a trimmer/router equipped with a 6mm straight bit, cut a slot 6mm wide and 10mm deep along the marked line. For materials like drywall or melamine board, using a grooving saw with a guide rail yields the cleanest cut.
Step 3 – Trim Light Strip to Length (if necessary). Measure the length of the slot. Use scissors or a utility knife to cut the LED strip to the required size. The strip can be cut at any point—there are no minimum cutting interval restrictions.

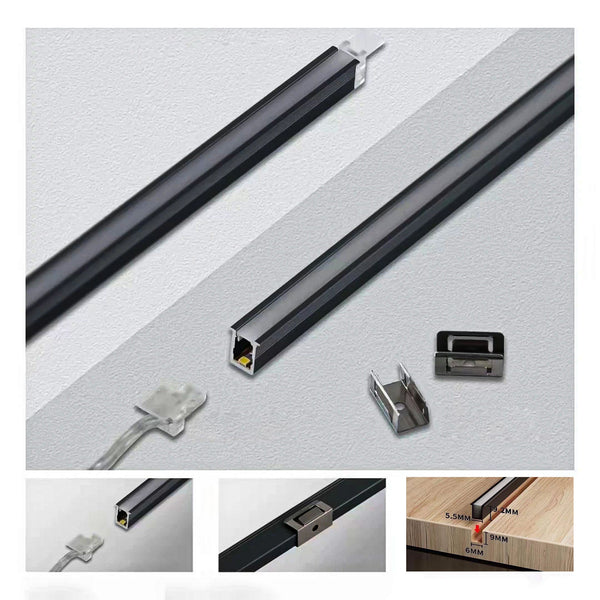

Step 4 – Install Solder-free Connector. Push the solder-free connector onto the cut end of the strip until it clicks into place. Attach the end cap to the other end of the strip. No soldering, tools, or waiting time required (note positive/negative polarity).
Step 5 – Placement and Connection. Press the LED strip into the routed slot. The 6×9mm strip sits flush with the shelf surface. Connect the solder-free connector cable to the 12V DC power supply.
Step 6 – Power On. Connect to the power supply. Instantly enjoy seamless, dot-free linear lighting. Installation complete.
Important Note: Use only a 12V DC power supply. Do not connect directly to 240V mains power.
Package Contents and Ordering Options
Main Option – Product Style
Option 1: 3000K Ultra-slim LED Cabinet Light (includes 1m LED strip) × 1 unit. Includes one 1-meter 3000K warm white LED strip with an integrated milky white diffuser.
Option 2: 4000K Ultra-slim Cabinet Light (1m). Includes one 1-meter LED strip (4000K cool white) with an integrated milky white soft-light diffuser.

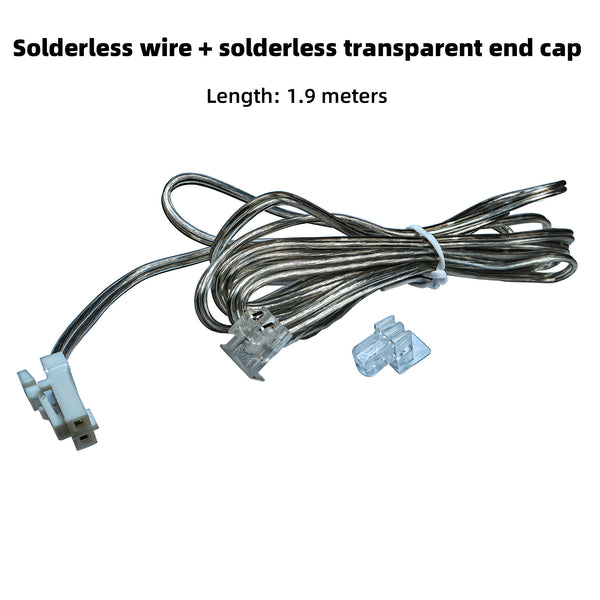

Option 3: Solder-free connector + 2 end caps. Includes one solder-free plug-in connector and two end caps. (Accessory option).
Sub-tab – Quantity
Available quantities: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, and 20 units.
For a single shelf or a trial order, select 1 unit. For standard kitchen cabinets or wardrobe shelves, select 2–3 units. For full kitchen renovations or walk-in closets, select 4–6 units. For multi-room residential projects or small retail fit-outs, select 7–10 units. For commercial projects, exhibition setups, or store renovations, select 20 units.
Tip: We recommend ordering an extra unit as a spare for future extensions or adjustments. Thanks to the solder-free system, any spare sections are ready for immediate plug-and-play use.
Why Choose This Product
If you lack soldering skills, this product offers the perfect solution. The solder-free plug-in connector allows for installation without requiring specialized electrical knowledge.
It is an ideal choice if your shelves are too thin for standard profiles. With a width of only 6mm and a height of 9mm, it can be recessed into standard 18mm melamine boards (requiring a 10mm deep groove).
It offers flexibility if you need custom lengths. You can cut it at any point without restrictions on minimum cutting intervals.
It meets your needs if you are looking for invisible lighting. Once recessed, only the light is visible; the fixture itself remains completely hidden.
It allows for rapid installation if you are facing tight deadlines on commercial projects. Plug-and-play connection—no need to wait for an electrician.
Safety is a priority; this product is safe and reliable. It operates on low-voltage 12V power and complies with Australian standards.

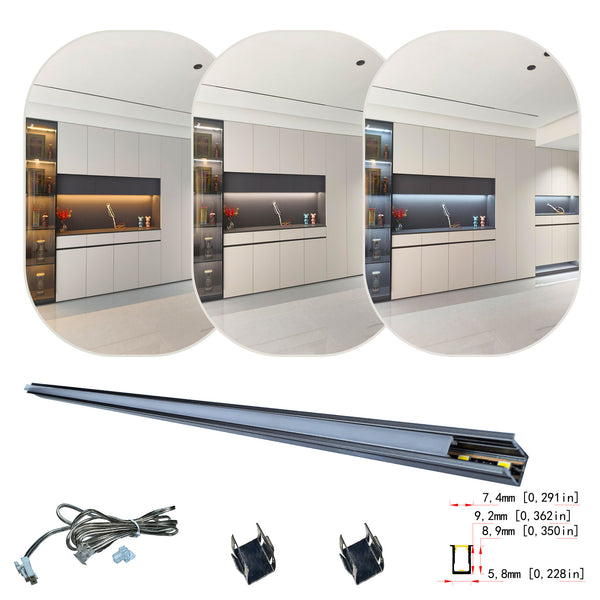

It offers both warm and cool light options. Choose between 3000K and 4000K color temperatures at checkout.
Electrical Safety and Compliance
This product is designed for use with a 12V DC power supply only; do not connect it to 240V AC mains power. Please use a 12V DC LED driver with an appropriate power rating (sold separately in our store). For fixed wiring installations, it is recommended that a licensed electrician handle the connection of the 240V-to-12V driver. The 12V low-voltage side (including the LED strip and connectors) is safe and suitable for DIY installation. This product has an IP20 rating and is intended for indoor use only; it is not suitable for damp areas or outdoor environments.
Pre-purchase Information
Please confirm the following before placing your order: First, ensure your shelf or panel can accommodate a groove measuring 6mm in width and 10mm in depth. Second, confirm that you already have or plan to purchase a 12V DC power supply. Third, select the appropriate color temperature: 3000K (warm white) or 4000K (white). Fourth, choose the correct quantity based on your project requirements. Fifth, if connectors and end caps are needed, please add the corresponding accessories to your order.
