| MX Luminaire | IP68 Professional Waterproof Connectors | |
| Waterproof Rating | IP68 (Submersible Grade) |
| Connector Type | Mating part with lock nut |
| Pin Options | 2-Pin / 3-Pin / 4-Pin / 5-Pin/6-Pin |
| Wire Gauge | High-Quality 22AWG Pure Copper Core |
| Shipping | FREE 5-12 Day Express to Australia |

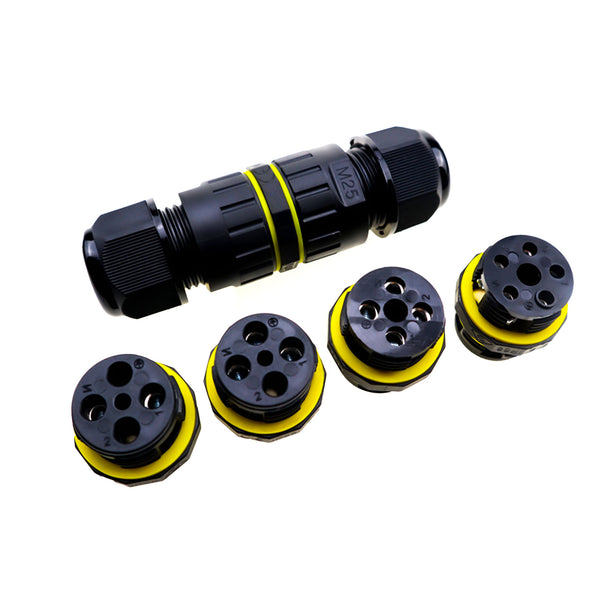

IP68 Waterproof Connector M20 (2/3/4/5-Pin) – Screwless Push-in Type (Suitable for Outdoor LED Lighting Cable Connections)
Product Overview
The EW-M20 series waterproof connector is designed for demanding outdoor and industrial environments. It features a screwless push-in design, enabling quick and secure wire connections without the need for tools. With an IP68 ingress protection rating, it offers complete protection against dust and prolonged immersion in water, making it ideal for LED streetlights, garden lighting, solar panels, and other outdoor electrical installations.
Key Features
IP68 Waterproof Rating: Fully sealed design effectively blocks water and dust; suitable for underground or submerged environments.
Screwless Push-in Design: Quick installation without tools; ensures reliable electrical contact.
Wide Operating Temperature Range: Stable performance between -40°C and +105°C, adaptable to extreme weather conditions.
Durable PA66 Housing: Resistant to UV radiation, corrosion, and mechanical stress.
Nickel-Plated Brass Terminals: Ensures low resistance and long-lasting, stable electrical conductivity.

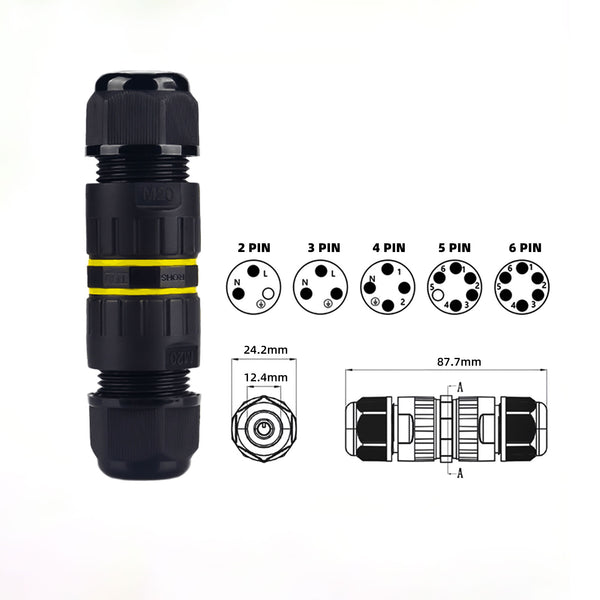

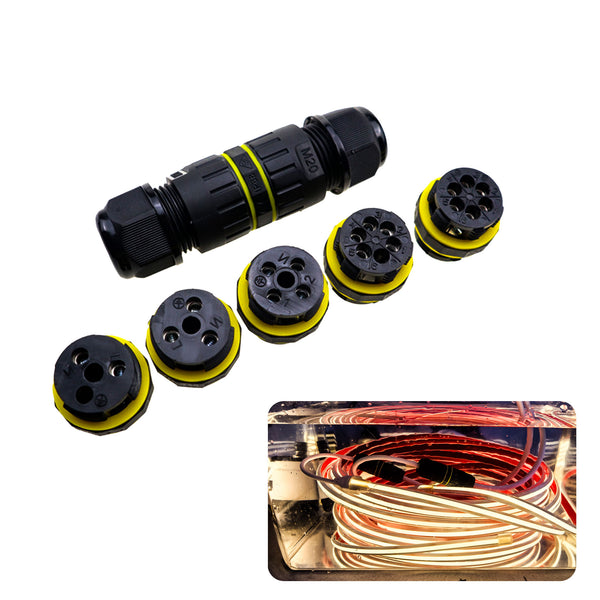

Multiple Pin Configurations: Available in 2, 3, 4, 5, and 6-pin versions to meet diverse wiring requirements. Technical Specifications

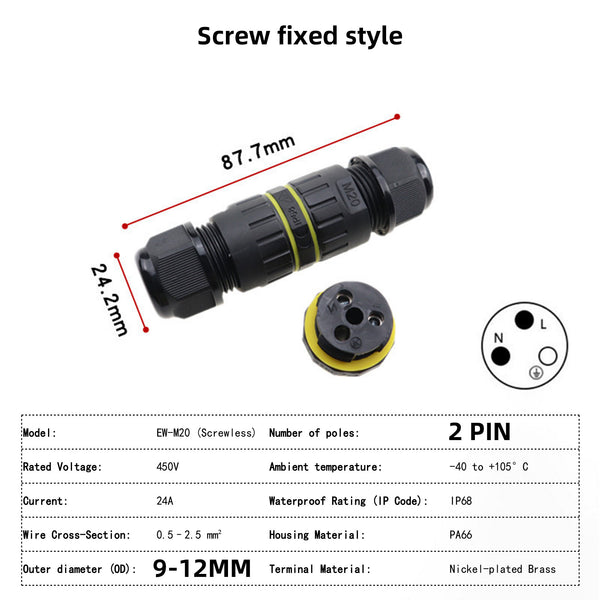

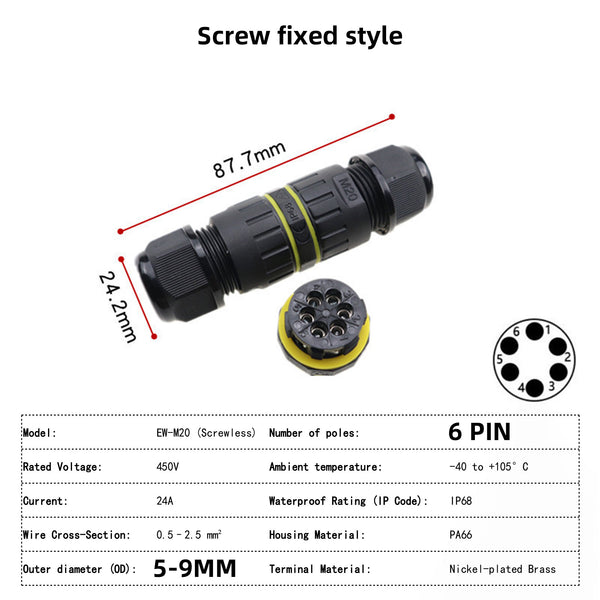

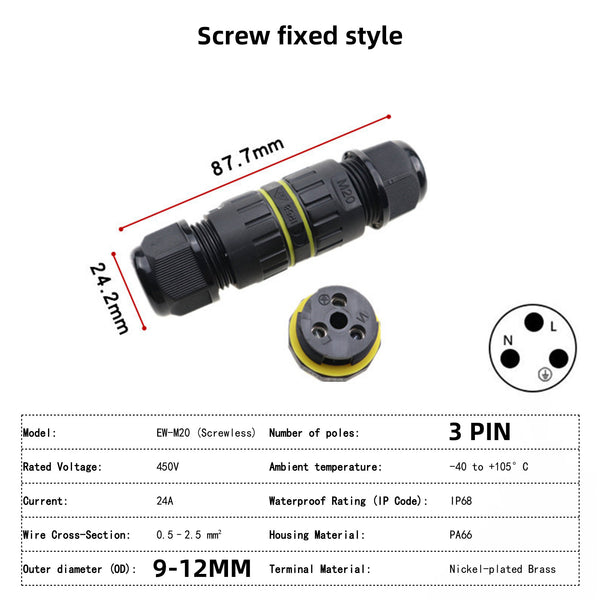

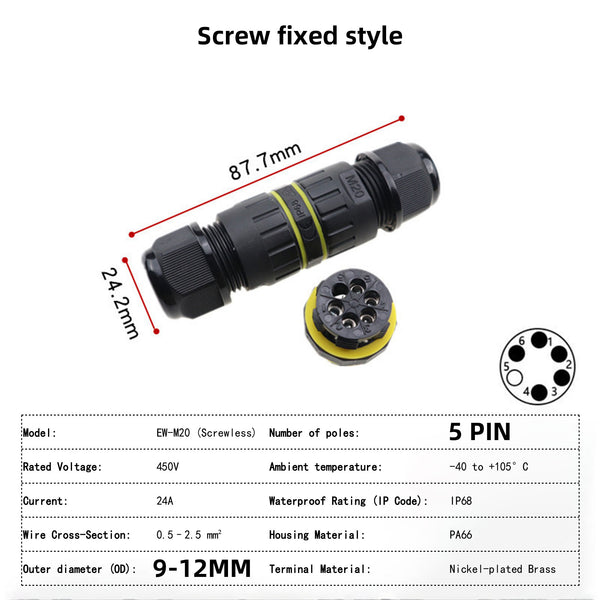

Model: EW-M20 (Screw-locking type)
Rated Voltage: 450V AC
Rated Current: 24A
Wire Cross-section: 0.5 - 2.5 mm²

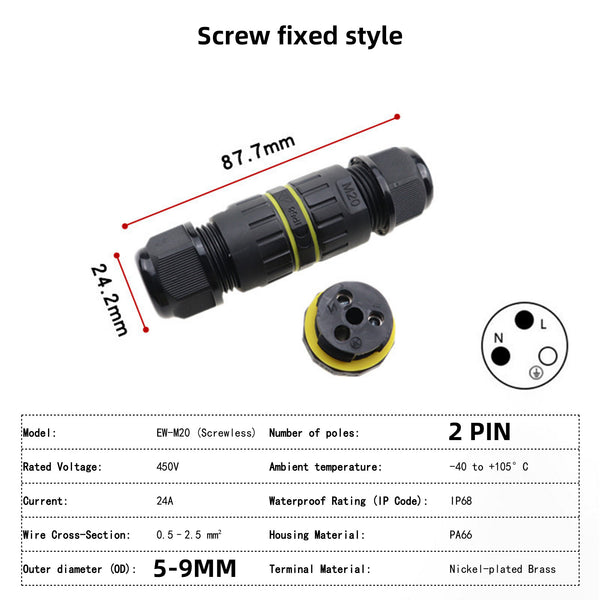

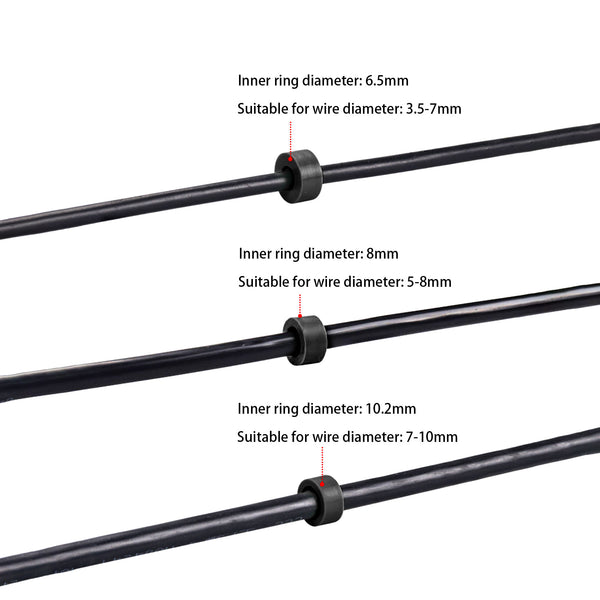

Outer Diameter (OD): 5-9mm / 9-12mm (select based on cable size)
Ambient Temperature: -40°C to +105°C
Ingress Protection: IP68
Housing Material: PA66 (Nylon)
Terminal Material: Nickel-plated brass
Applications
Ideal for:
Outdoor LED floodlights and spotlights
Solar garden lights and pathway lights
Landscape and architectural lighting systems
Electric vehicle (EV) charging stations
Industrial control panels in damp environments
Marine and yacht lighting
Packaging Options
Select quantity based on project needs:
Single pack (1 set)
Multi-packs: 2, 3, 4, 5, 6, 7, 8, 9, or 10 sets
Bulk pack: 20 sets (suitable for contractors and large-scale installations)

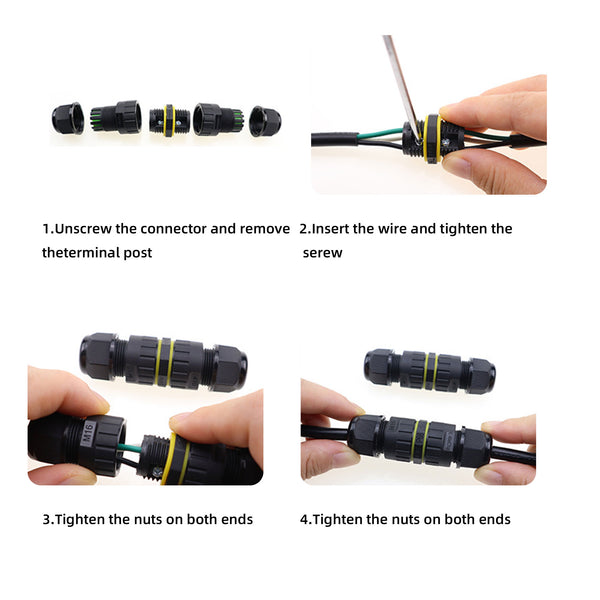

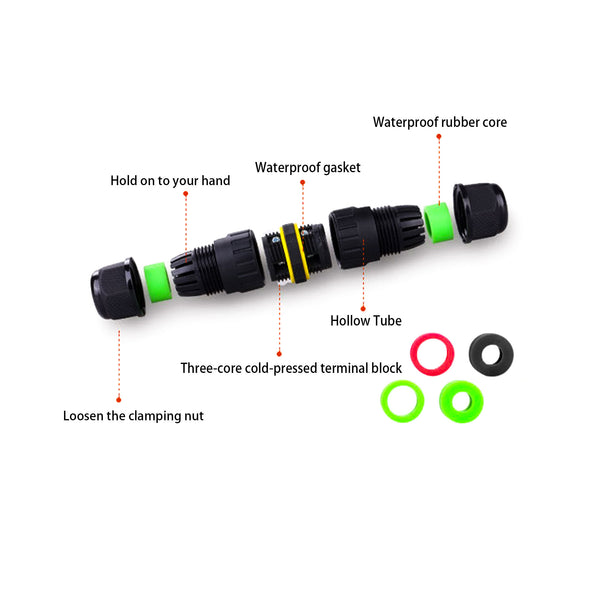

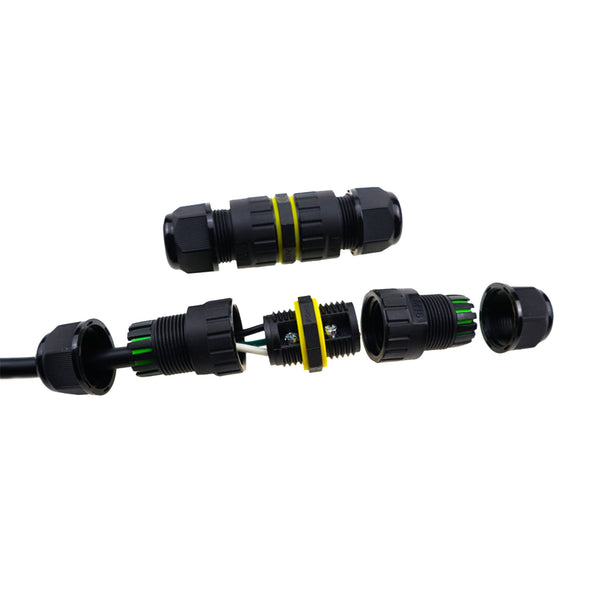

Installation Tips
Strip 8-10mm of insulation from the wire before insertion.
Ensure pins are aligned before connecting.
Hand-tighten the locking nut—no tools required.
Why Choose This Connector?
Unlike traditional screw-terminal connectors, this model eliminates the risk of wires loosening due to vibration or thermal expansion and contraction. Its clamping mechanism maintains constant pressure on the conductor, ensuring stable long-term performance—crucial for the safety of outdoor lighting circuits.
