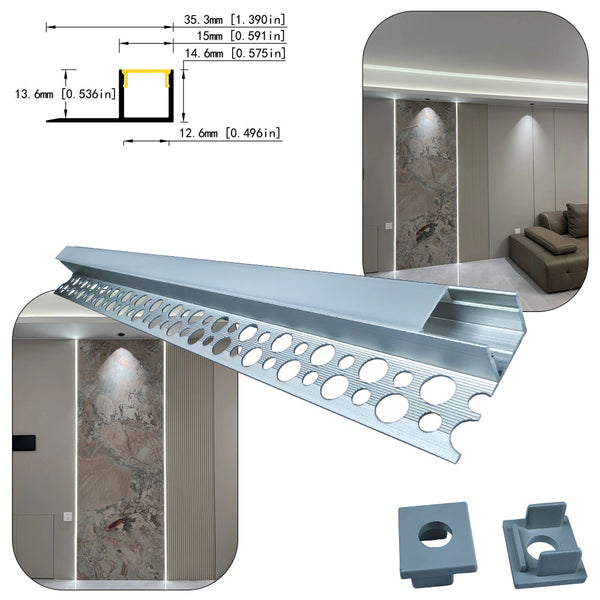

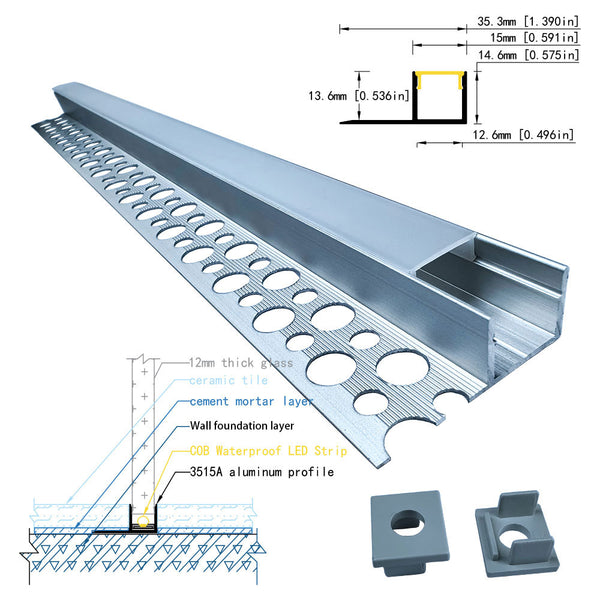

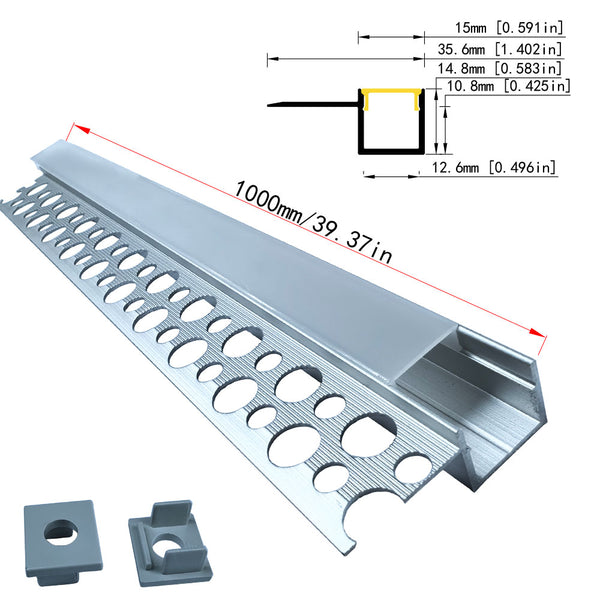

| MX Luminaire | 3515/3515A Tile-In LED Channel Specifications | |
| Application | Tile Wall & Ceiling Edge Lighting (Recessed) |
| Tile Compatibility | Perfect for 10mm - 12mm thick tiles/stones |
| Internal Width | Fits LED strips up to 12mm wide |
| Installation | Perforated flange for easy tile adhesive bonding (No pre-slotting needed) |

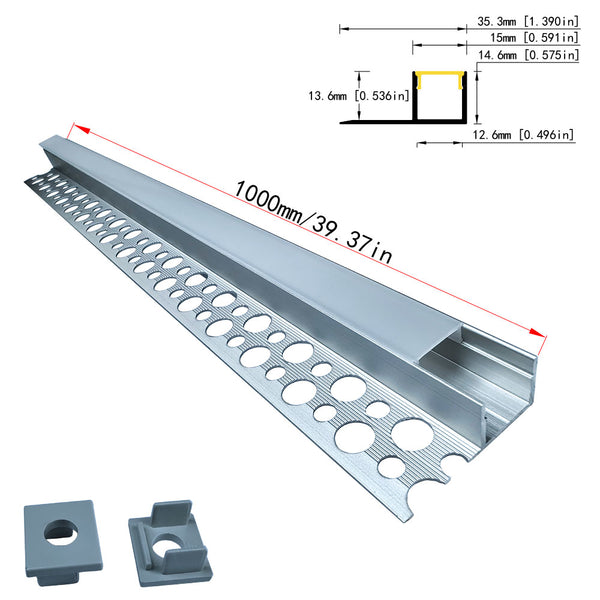

| Length Options | 1 Meter / 2 Meters (Seamless Continuous Glow) |
| Shipping | FREE 5-12 Day Express to Australia |
Package includes:
A specified quantity of 3515/3515A recessed aluminum profiles (1 meter or 2 meters long)
Matching white PC milky diffuser cover
Protective end caps (one pair per profile)
Please note: LED light strips, tile adhesive, power supply/driver, dimming controller, and corner connectors are sold separately. (Sold separately in this store)
Australian Real-World Applications

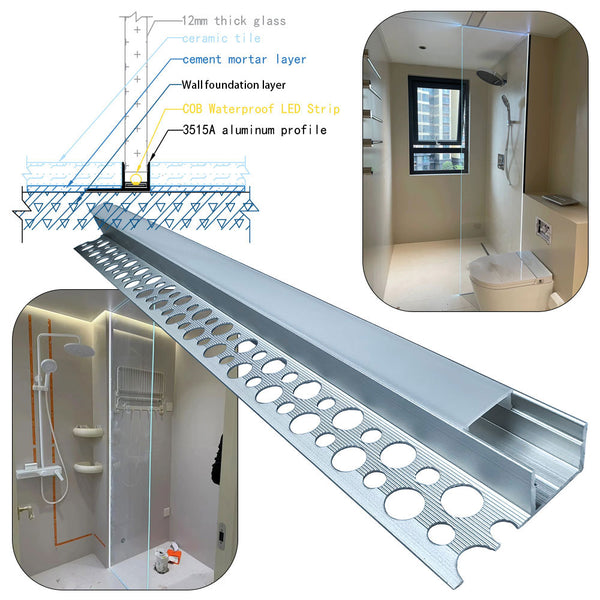

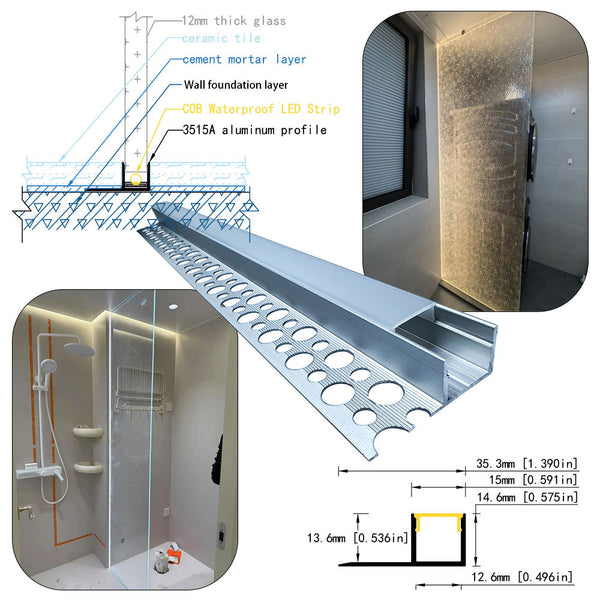

Shower Niche Lighting: Ideal application for the 3515A profile. Mounting the profiles on the top edge or rear vertical surface of a tiled shower niche provides soft, glare-free lighting, enhances product visibility, and creates a spa-like atmosphere. The perforated flange can be directly bonded to the waterproof substrate without penetrating the waterproofing layer—crucial in Australian shower enclosure construction where waterproofing integrity is paramount. Anodized aluminum withstands continuous moisture, steam, and cleaning agent exposure without performance degradation. Combined with IP65-rated COB light strips and sealed end caps, it fully meets the requirements of humid environments.
Bathroom Mirror Bezel Lighting: Creates a bezel for recessed or surface-mounted bathroom mirrors with integrated LED lighting, providing soft, shadow-free facial illumination for grooming. The 3515A flush-mounts with the surrounding tiles, creating a seamless transition between the mirror, the lighting, and the tile surface. Compatible with 12mm light strips, and optional high color rendering index (CRI) COB strips offer superior color reproduction and accurate skin tone rendering. Particularly suitable for master suites and hotel bathrooms in Australia, where mirror lighting quality directly impacts the user experience.
Kitchen Backsplash Accent Lighting: Illuminates the vertical surface of tiled or stone kitchen backsplashes with integrated linear lighting, adding ambient and accent lighting to countertop work areas. The 3515A is flush-mounted with the backsplash surface, avoiding protruding fixtures that obstruct cleaning or create visual clutter. The anodized silver finish complements the various stainless steel appliances and chrome faucets commonly found in Australian kitchens. The 2-meter length covers standard backsplash height without gaps.
Tile Wall and Ceiling Transition Lighting: Create sophisticated architectural detail at the junction of tiled walls and ceilings. The 3515A luminaire effectively connects transition areas, providing indirect upward or downward lighting to illuminate adjacent surfaces. This application is particularly effective in bathrooms, laundry rooms, and damp commercial areas, where the tile-ceiling junction is a striking visual line. Perforated flanges adhere simultaneously to both the wall tile adhesive layer and the ceiling substrate, creating a structurally integrated transition detail.
Commercial Retail Showrooms and Hotel Bathrooms: From boutique hotel suites to upscale retail fitting rooms, the 3515A luminaire provides seamless, integrated tile lighting for high-end commercial environments. Adhesive installation allows tilers to integrate the lighting into their daily workflow without coordinating separate electrical pre-installation steps. The durable anodized aluminum material withstands commercial cleaning processes and high-frequency use without performance degradation. The 2-meter length minimizes the seams common in large-format tile installations in commercial projects.
Tile Edge Lighting for Stair Treads and Risers: Mounting the 3515A luminaire on the leading edge of tiled stair treads or risers provides safe, glare-free directional lighting. The recessed installation ensures no tripping hazard from the protruding profile edge, while the aluminum body protects fragile tile edges from chipping and abrasion. The perforated flange bonds firmly to the stair substrate and can withstand foot traffic and cleaning. This product is popular in multi-storey homes, apartment buildings, and commercial spaces with tiled staircases in Australia.
Frequently Asked Questions
Q: Do I need to pre-groove the substrate before installing the 3515A profile?
A: No. This is precisely the main advantage of the 3515A profile over traditional recessed profiles. Its perforated flange design allows for direct embedding into the tile adhesive during normal tiling. No pre-groove, mechanical fasteners, or penetration of the substrate or waterproofing membrane are required. Simply apply tile adhesive to the substrate, press the profile flange into the adhesive layer, and then continue tiling along both sides. Perforations ensure a strong mechanical bond forms as the adhesive cures.
Q: What thicknesses of tiles is the 3515A profile suitable for?
A: The 3515A profile is suitable for tiles and natural stone with thicknesses from 10 mm to 12 mm. This covers the vast majority of ceramic, tile, and natural stone specifications used in Australian residential and commercial projects. For tiles less than 10 mm thick, the profile may protrude slightly from the tile surface; for tiles thicker than 12 mm, the profile may be slightly recessed. Please confirm the tile thickness before ordering. If your tile thickness exceeds this range, please contact our team, and we will recommend other suitable profiles.
Q: Can the 3515A profile be used in showers or damp areas?
A: Yes, but appropriate precautions should be taken. The 6063-T5 anodized aluminum body itself is corrosion-resistant and suitable for damp environments. However, the profile itself has an IP20 protection rating. For installations in shower rooms and damp areas, you must:
Use LED strips with an IP65 or higher protection rating.
Apply clear silicone sealant to all end caps and diffuser edges to prevent moisture ingress.
By following these precautions, 3515A profiles will operate reliably in shower rooms, steam rooms, and other high-humidity environments.
Q: How do I join two 3515A profiles end-to-end to extend the working distance?
A: Butt-joint the two profiles end-to-end, ensuring clean, burr-free cut edges. Use a short LED strip to connect the two profiles at the internal seam, or use a compatible straight-through connector (sold separately) for precise alignment. Apply a small amount of clear silicone sealant to the external seam to prevent moisture and grout ingress. A 2-meter profile length minimizes the number of seams required for standard Australian bathroom and kitchen sizes.
Q: Can I customize the length of my 3515A profiles?
A: Yes. 6063-T5 aluminum profiles can be cut using a fine-toothed hacksaw or a miter saw with a non-ferrous metal blade. PC diffusers can be trimmed using a sharp utility knife or a fine-toothed plastic cutter. Before installing end caps and diffusers, be sure to remove any burrs from the cut edges using fine sandpaper or a file. Measure twice, cut once—this is especially important in tile-integrated applications, as the profile length must precisely match the tile laying method.
Q: What power supply do I need?
A: Select a constant voltage LED driver that matches the strip voltage (12V or 24V DC). Calculate the total power: power per meter of strip × total installation length, then add at least a 20% margin. For example, a 3-meter-long 10mm COB light strip with a power of 10W per meter has a load of 30W → requiring at least a 36W driver (choose the standard 40W or 60W size).
Q: Is the 3515A model suitable for natural stone and ceramic tiles?
A: Yes. The 3515A model is compatible with natural stone (marble, granite, travertine, limestone) with a thickness ranging from 10mm to 12mm. The anodized aluminum material is chemically stable and will not react with stone sealants, adhesives, or grouts. For porous stone, proper sealing is essential before tiling to prevent adhesive staining. The perforated flange provides excellent adhesion to both stone and tile adhesives.
Q: What is the difference between the 3515A and the 20x10mm double-sided profile?
A: These two profiles have completely different uses:
3515A Tile-Inserted Profile: Designed specifically for tile installation. Featuring a perforated flange for easy adhesion with adhesive during tile installation. Flush-fits 10mm to 12mm thick tiles. Integrates tile edge trim and lighting functionality.
20x10mm Dual-Model Profile: A universal profile suitable for wood, drywall, and composite substrates, suitable for surface or recessed mounting. Not suitable for tile installation. Requires mechanical snap-fit or milling for securing.
For direct integration of lighting into the tile surface, select 3515A. For non-tile substrates, select the 20x10mm size.
