Product Title:
5020 LED Aluminum Channel Profile with White PC Cover - 50x20mm Wide Housing for Main Lighting, DIY Linear Pendant Light, Fits 2+ LED Strips
5020 LED Aluminum Channel Profile with White PC Cover - 50x20mm Wide Housing for Main Lighting, DIY Linear Pendant Light, Fits 2+ LED Strips
Product Variations (Drop-Down Menus)
Tab 1: Product Style / Model
• 5020A: Silver Aluminum Profile + White PC Diffuser Cover (1 Meter length, 1pc)
• 5020B: Silver Aluminum Profile + White PC Diffuser Cover (1 Meter length, 1pc)
(Note: Select the model that best fits your specific installation or mounting preference.)
• 5020A: Silver Aluminum Profile + White PC Diffuser Cover (1 Meter length, 1pc)
• 5020B: Silver Aluminum Profile + White PC Diffuser Cover (1 Meter length, 1pc)
(Note: Select the model that best fits your specific installation or mounting preference.)
Tab 2: Quantity Options
• 1pc | 2pcs | 3pcs | 4pcs | 5pcs
• 6pcs | 7pcs | 8pcs | 9pcs | 10pcs | 20pcs
• 1pc | 2pcs | 3pcs | 4pcs | 5pcs
• 6pcs | 7pcs | 8pcs | 9pcs | 10pcs | 20pcs
Product Overview
Upgrade your space with our 5020 Series LED Aluminum Profile Housing Kit. Designed for high-performance lighting, this premium silver aluminum channel features an extra-wide 50mm (5cm) and 20mm deep inner groove. Unlike standard narrow profiles, the 5020 series provides a massive lighting surface, allowing you to install at least two LED strips side-by-side. This high-lumen capability transforms the profile from a simple decorative accent into a powerful primary/main lighting solution. Paired with a high-quality white PC diffuser cover, it delivers a smooth, dot-free, and professional linear lighting effect.
Key Features & Benefits
✅ Extra-Wide 50x20mm Inner Groove
The spacious 50mm width and 20mm depth easily accommodate multiple COB or SMD LED strips (minimum 2 strips recommended). This wide design ensures excellent heat dissipation and maximum brightness.
The spacious 50mm width and 20mm depth easily accommodate multiple COB or SMD LED strips (minimum 2 strips recommended). This wide design ensures excellent heat dissipation and maximum brightness.
✅ True Main Lighting Capability
With a 5cm wide light-emitting surface, this profile outputs enough light to serve as the primary illumination for large spaces, eliminating the need for traditional bulky ceiling fixtures.
With a 5cm wide light-emitting surface, this profile outputs enough light to serve as the primary illumination for large spaces, eliminating the need for traditional bulky ceiling fixtures.
✅ Premium White PC Diffuser
The high-transmittance milky white PC cover softens the light, eliminates LED "hotspots" or dots, and provides a uniform, elegant neon-like linear glow.
The high-transmittance milky white PC cover softens the light, eliminates LED "hotspots" or dots, and provides a uniform, elegant neon-like linear glow.
✅ High-Quality Silver Aluminum Body
Constructed from aviation-grade aluminum alloy, it acts as a massive heat sink to extend the lifespan of your LED strips while providing a sleek, modern metallic finish.
Constructed from aviation-grade aluminum alloy, it acts as a massive heat sink to extend the lifespan of your LED strips while providing a sleek, modern metallic finish.
✅ Ultimate DIY Flexibility
Perfect for custom DIY projects. You can cut the aluminum profile and PC cover to your desired lengths using standard saws, allowing you to create various geometric shapes, long continuous lines, or suspended linear pendant lights.
Perfect for custom DIY projects. You can cut the aluminum profile and PC cover to your desired lengths using standard saws, allowing you to create various geometric shapes, long continuous lines, or suspended linear pendant lights.
Product Specifications

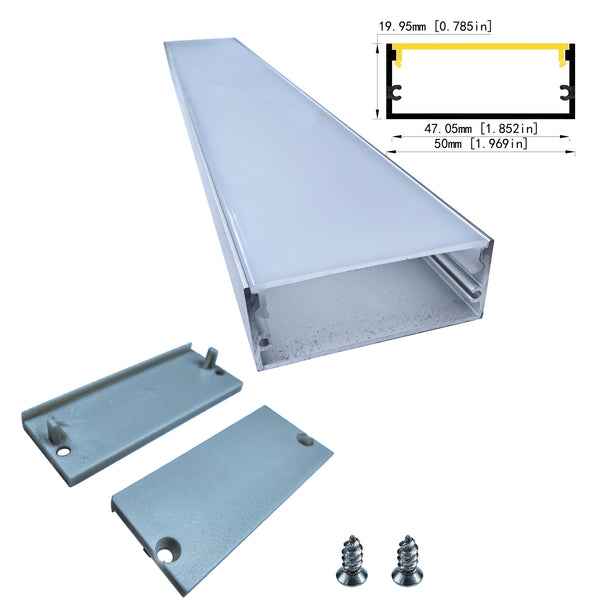

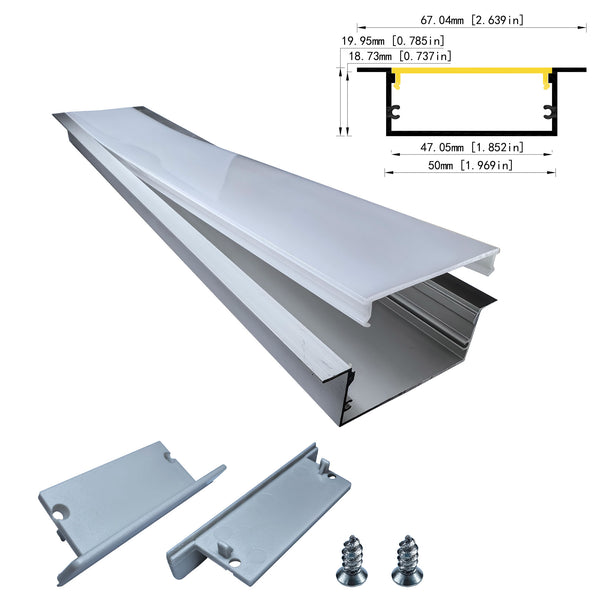

• Model Options: 5020A / 5020B
• Outer Material: Anodized Silver Aluminum Alloy
• Cover Material: Milky White PC (Polycarbonate) Diffuser

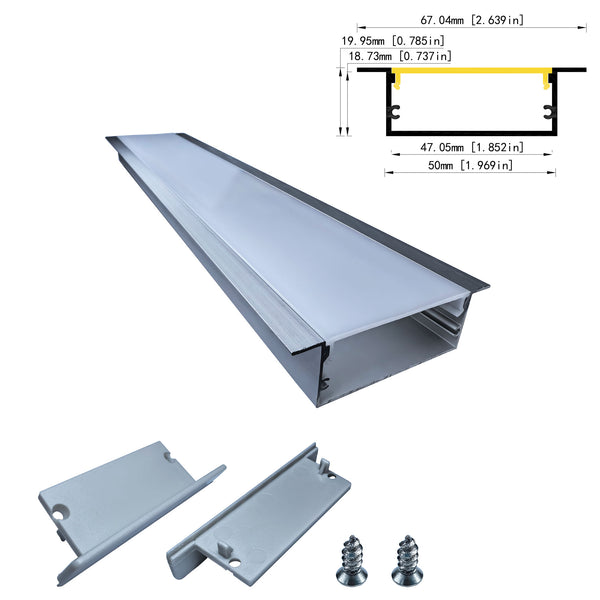

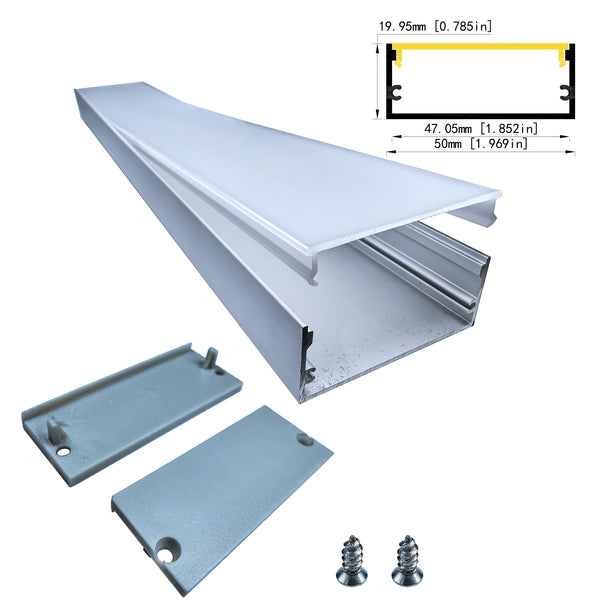

• Inner Groove Size: Width 50mm (5cm) x Depth 20mm (2cm)
• Standard Length: 1 Meter (100cm) per piece
• LED Strip Compatibility: Fits standard COB and SMD LED strips (Fits 2 or more strips side-by-side)
• Lighting Type: Main Lighting / Primary Illumination / Decorative Accent
• Outer Material: Anodized Silver Aluminum Alloy
• Cover Material: Milky White PC (Polycarbonate) Diffuser
• Inner Groove Size: Width 50mm (5cm) x Depth 20mm (2cm)
• Standard Length: 1 Meter (100cm) per piece
• LED Strip Compatibility: Fits standard COB and SMD LED strips (Fits 2 or more strips side-by-side)
• Lighting Type: Main Lighting / Primary Illumination / Decorative Accent
Ideal Applications
Because of its high brightness and large-scale design, the 5020 profile is highly recommended for large commercial and modern residential spaces:

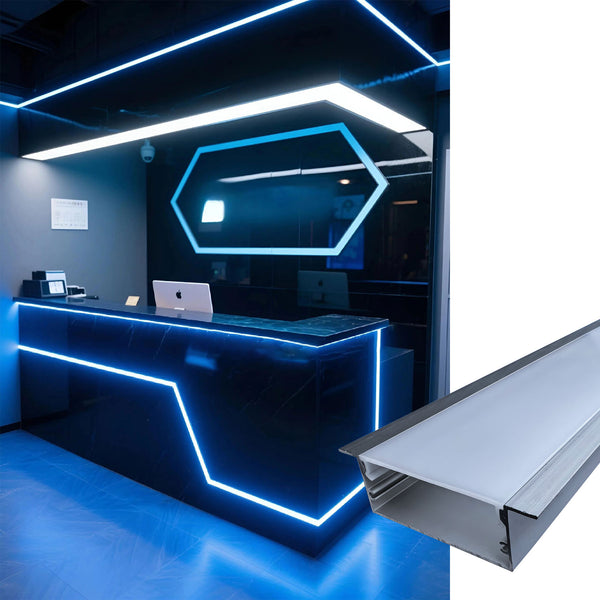

• Exhibition Halls & Museums: Create striking, continuous overhead light lines to guide visitors.

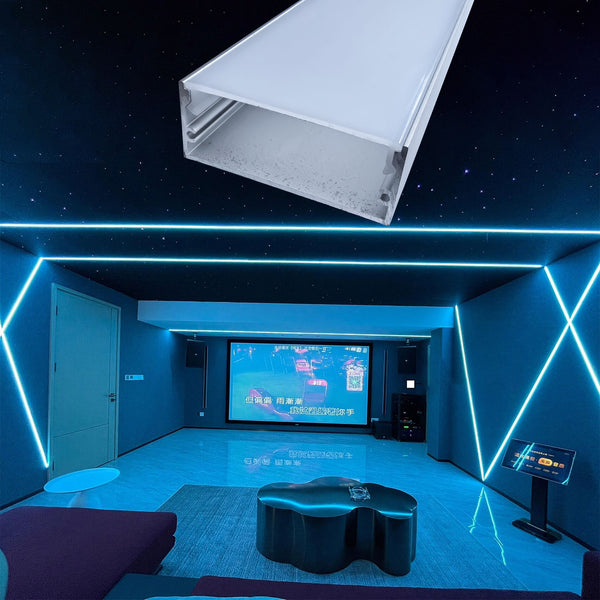

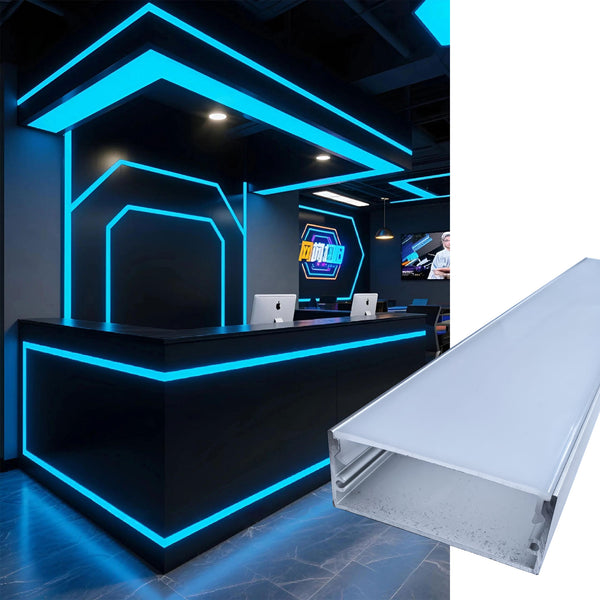

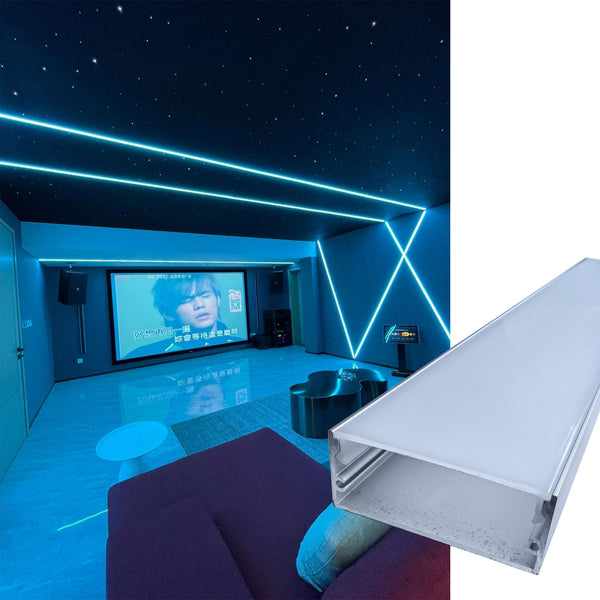

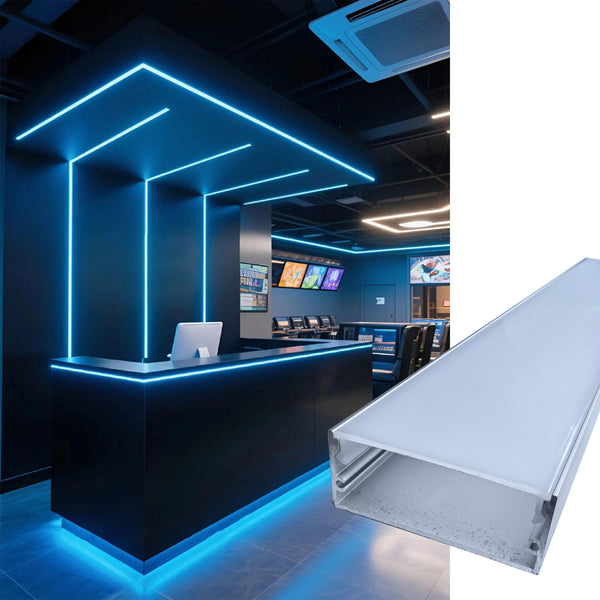

• Esports & Gaming Rooms: Build dynamic, high-output geometric ceiling or wall lighting for an immersive atmosphere.

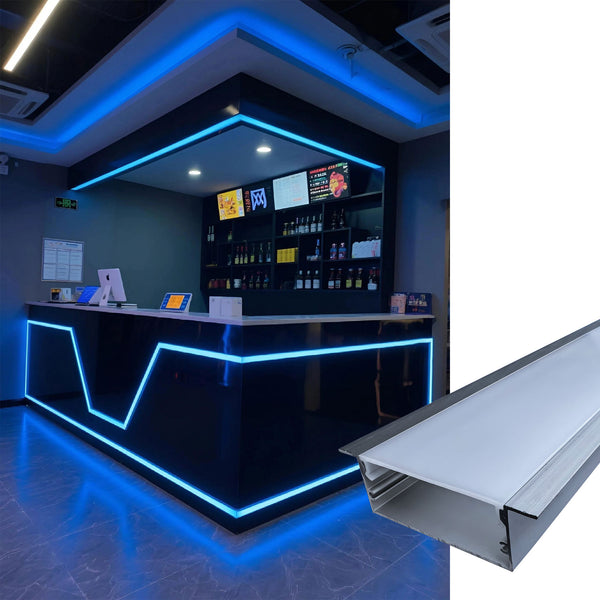

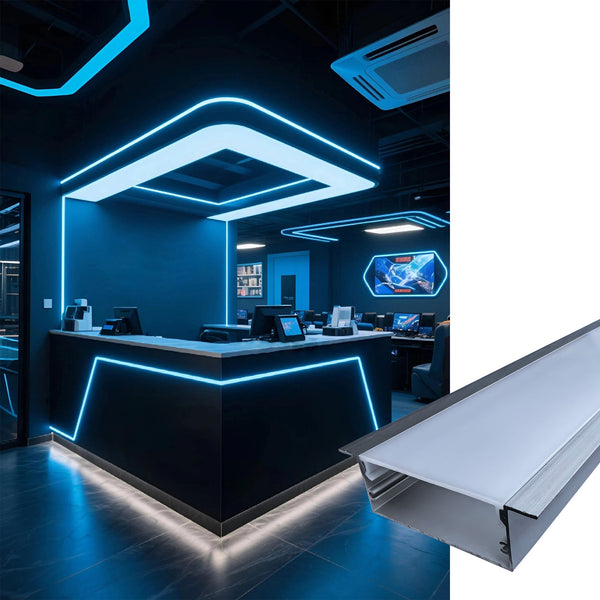

• Supermarkets & Retail Stores: Provide bright, uniform main lighting for aisles and product displays.

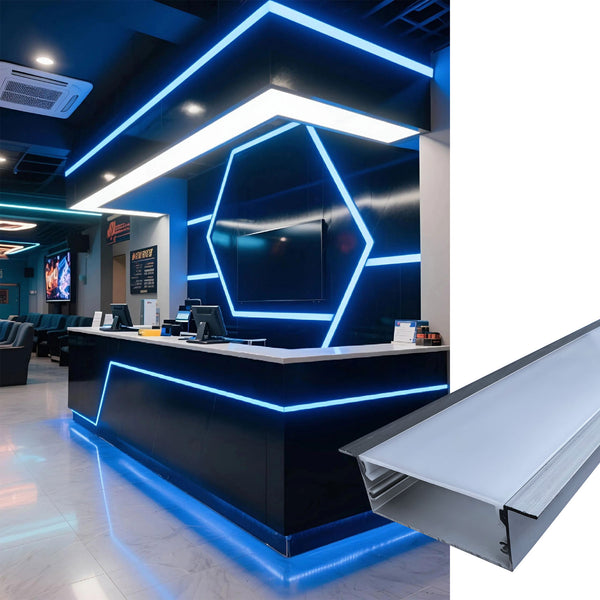

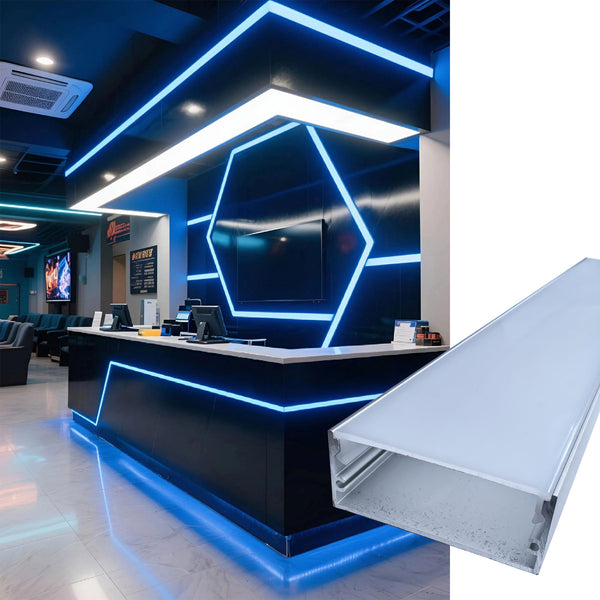

• Offices & Commercial Spaces: Perfect for modern suspended linear pendant lights over workstations or conference tables.

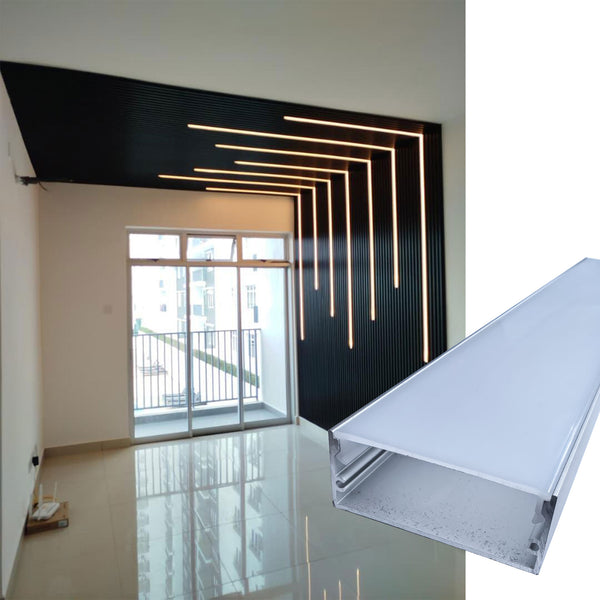

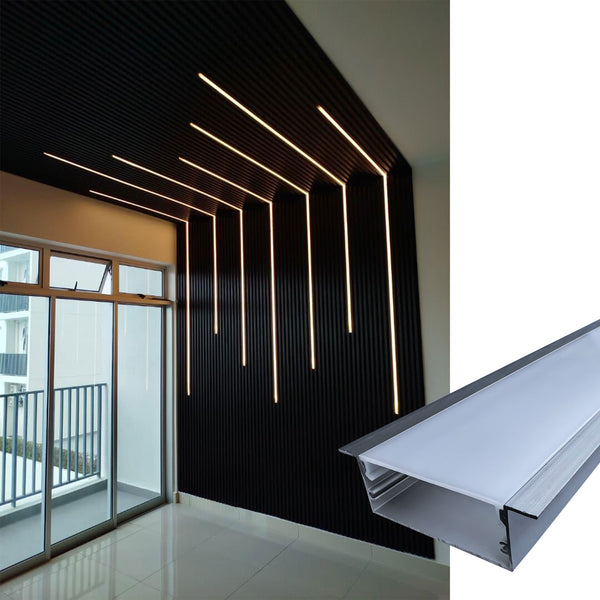

• Large Living Rooms & Lofts: Use as a primary ceiling light source in minimalist or industrial interior designs.
• Exhibition Halls & Museums: Create striking, continuous overhead light lines to guide visitors.
• Esports & Gaming Rooms: Build dynamic, high-output geometric ceiling or wall lighting for an immersive atmosphere.
• Supermarkets & Retail Stores: Provide bright, uniform main lighting for aisles and product displays.
• Offices & Commercial Spaces: Perfect for modern suspended linear pendant lights over workstations or conference tables.
• Large Living Rooms & Lofts: Use as a primary ceiling light source in minimalist or industrial interior designs.
Installation & DIY Guide
- Plan & Measure: Design your lighting layout (straight lines, grids, or custom shapes) and measure the required lengths.
- Cut to Size: Use a fine-toothed saw to cut the aluminum profile and the PC cover to your exact measurements.
- Mount the Profile: Secure the aluminum channel to the ceiling, wall, or suspension cables using appropriate mounting clips or screws (mounting accessories not included).
- Apply LED Strips: Peel the backing of your LED strips and stick them side-by-side inside the 50mm wide groove. Connect the wiring.
- Snap on the Cover: Gently press the white PC diffuser cover into the aluminum channel until it clicks securely into place.
- Power On: Connect to your LED driver/power supply and enjoy brilliant, dot-free main lighting!
Package Includes
• Selected Quantity of 5020A or 5020B Silver Aluminum Profiles (1 Meter each)
• Selected Quantity of Matching White PC Diffuser Covers (1 Meter each)
(Note: LED strips, end caps, mounting clips, and power supplies are not included and can be purchased separately in our store.)
• Selected Quantity of Matching White PC Diffuser Covers (1 Meter each)
(Note: LED strips, end caps, mounting clips, and power supplies are not included and can be purchased separately in our store.)
Shipping & Customer Service
• Fast & Secure Shipping: We carefully package all aluminum profiles to prevent bending or damage during transit. Orders are shipped within 1-3 business days.
packaging.
• Dedicated Support: Have questions about DIY installation, cutting, or matching LED strips? Message us! Our lighting experts will reply within 24 hours.
packaging.
• Dedicated Support: Have questions about DIY installation, cutting, or matching LED strips? Message us! Our lighting experts will reply within 24 hours.
Transform Your Space with Professional Linear Lighting!
Select your preferred Style and Quantity from the drop-down menus above and click "Buy It Now" to start your lighting project today!
Select your preferred Style and Quantity from the drop-down menus above and click "Buy It Now" to start your lighting project today!
