Advanced LED Cabinet Light Sensors and Junction Boxes - 12V/24V DC (Finished cabinet lights are also available in this shop)
Upgrade your kitchen, wardrobe, or bathroom lighting with our professional-grade sensor switches and junction boxes. Compatible with most standard 2-pin LED cabinet lights and COB light strips.
📋 Product Specifications (Please select from the drop-down menu)
1. Switch Types:
Single Door Sensor: Lights on when the door is open, off when the door is closed.
Dual Door Sensor: One unit controls two doors.
Wave Sensor: Opens/closes with a wave of the hand (non-contact).
PIR Human Body Sensor: Automatically turns on when movement is detected, automatically turns off after 30 seconds.
Mirror Touch Controller: Dimmable touch switch for LED mirrors.
2. Junction Box (Splitter) Types:
3-Port Hub: Connects up to 3 lights.
6-Port Hub: Connects up to 6 lights.
10-Port Hub: Connects up to 10 lights.
3. Quantity Options:
Optional Packaging Sizes: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, or 20 units.
🔍 Detailed Specifications

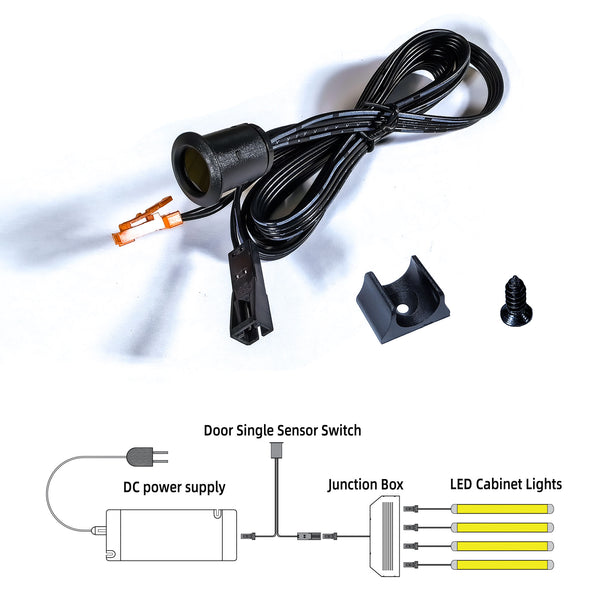

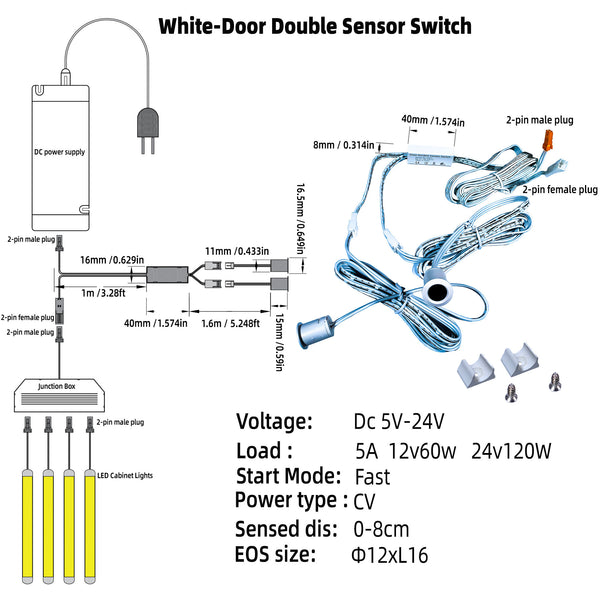

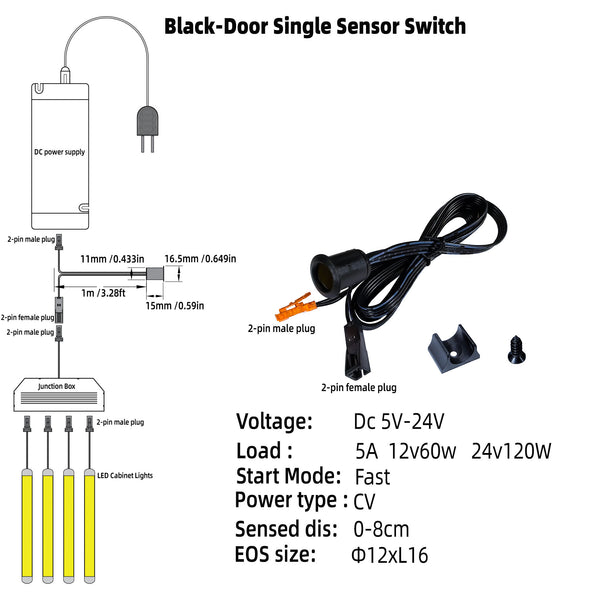

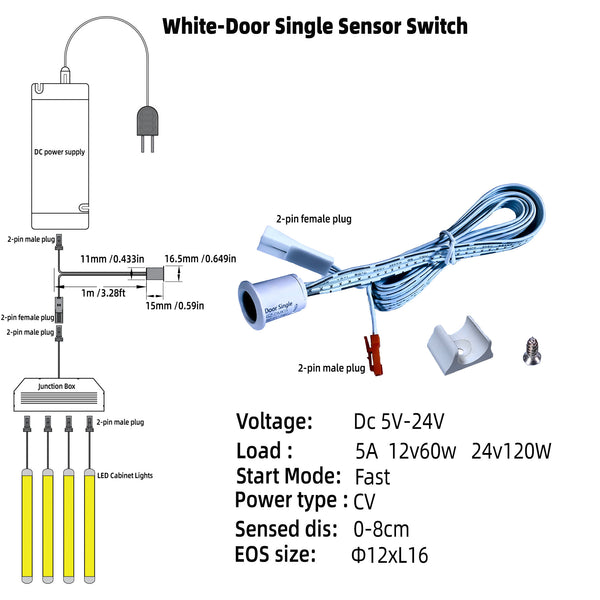

A. Door Magnetic Switch (Single/Double)
Suitable for wardrobes, closets, and cabinets.
Operating Voltage: DC 5V - 24V
Maximum Load: 60W (12V) / 120W (24V)
Sensing Distance: 0 - 8 cm (Adjustable Sensitivity)
Activation Mode: Fast Response
Installation Method: Recessed Mount (Hole Diameter: Φ12mm x L16mm)
Cable Length: Approx. 1 meter
Connector: Standard 2-Pin Male/Female Plug
Functions:
Single: 1 sensor head controls the light.

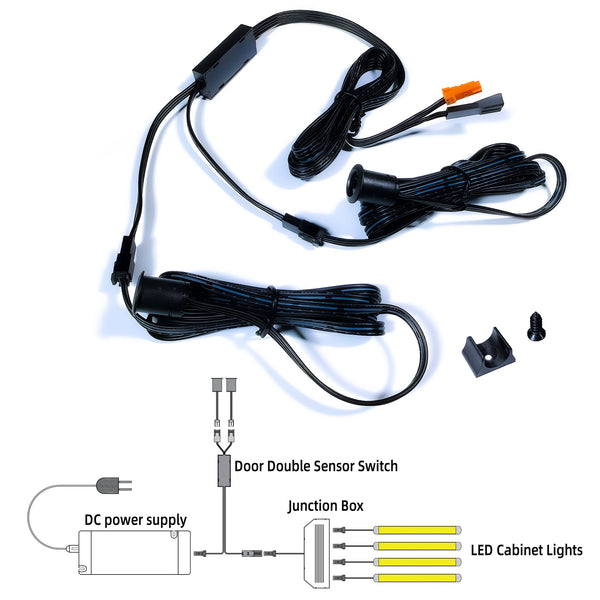

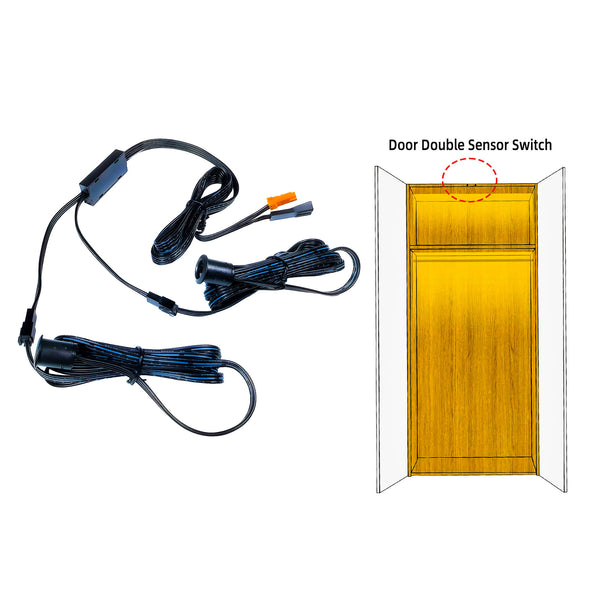

Double: 2 sensor heads control the light (suitable for double-door cabinets).

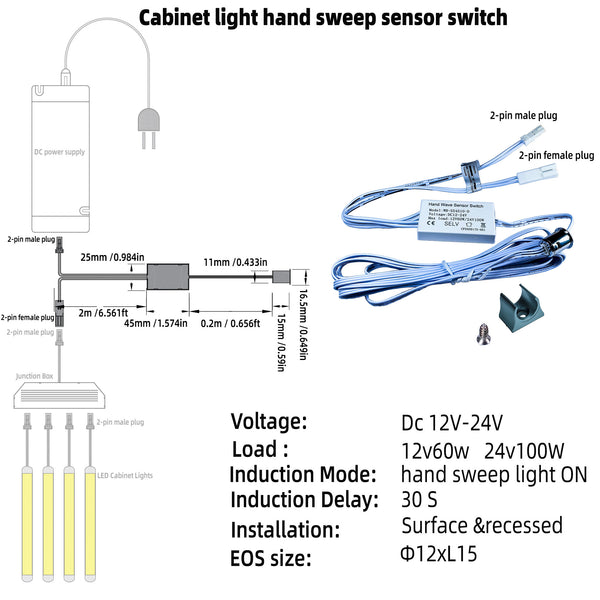

B. Hand-Swipe Sensor Switch (Gaze Control)
Hygienic and convenient contactless control, suitable for under-cabinet lighting in kitchens.
Operating Voltage: DC 12V - 24V
Maximum Load: 60W (12V) / 100W (24V)
Sensing Mode: Hand Swipe (turns on/off with a wave of the hand within 3-5 cm)
Sensing Delay: The light remains on for approximately 30 seconds after the last sensor (or continues on until the next wave, depending on mode settings).
Installation Method: Surface mount or recessed mount (Hole: Φ12mm x L15mm)
Cable Length: Input 2m / Output 0.2m
Connector: Standard two-prong plug

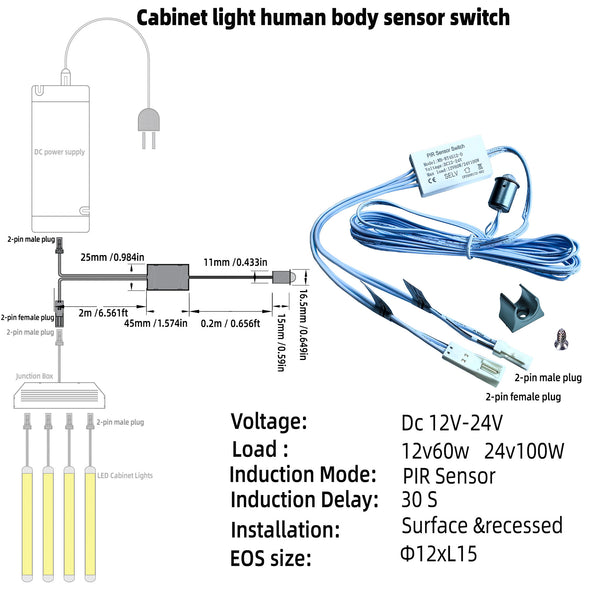

C. PIR Motion Sensor
Energy-saving solution for hallways, pantry, and drawers.
Operating Voltage: DC 12V - 24V
Maximum Load: 60W (at 12V) / 100W (at 24V)
Sensor Type: PIR (Passive Infrared)
Sensing Delay: Automatic shutdown after 30 seconds of inactivity
Installation Method: Surface mount or recessed mount (Hole: Φ12mm x L15mm)
Cable Length: Input 2m / Output 0.2m
Connector: Standard two-prong plug

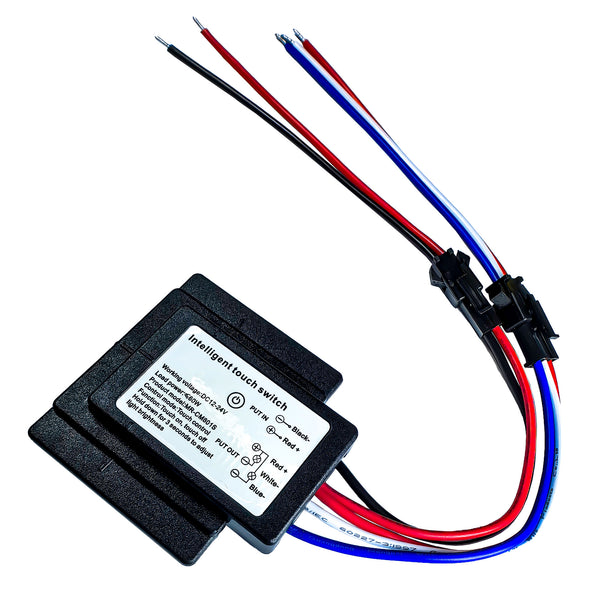

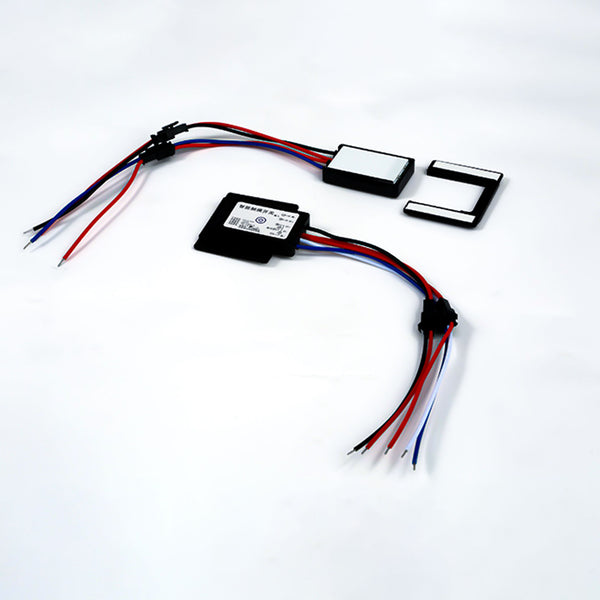

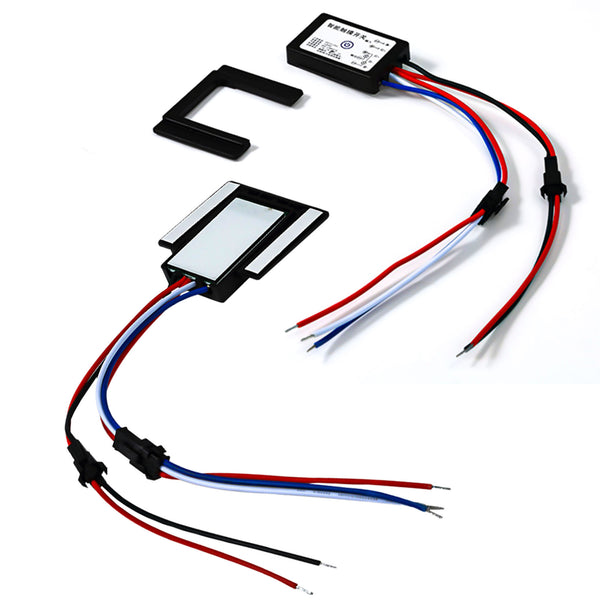

D. Smart Touch Switch (Suitable for LED Mirrors)
Bathroom Vanity Mirror Stepless Dimming Controller
Operating Voltage: DC 12V - 24V
Maximum Load: 60W
Function: Short press to turn on/off; long press (3 seconds) to adjust brightness (dimming, suitable for adjusting brightness and color temperature of LED light strips).

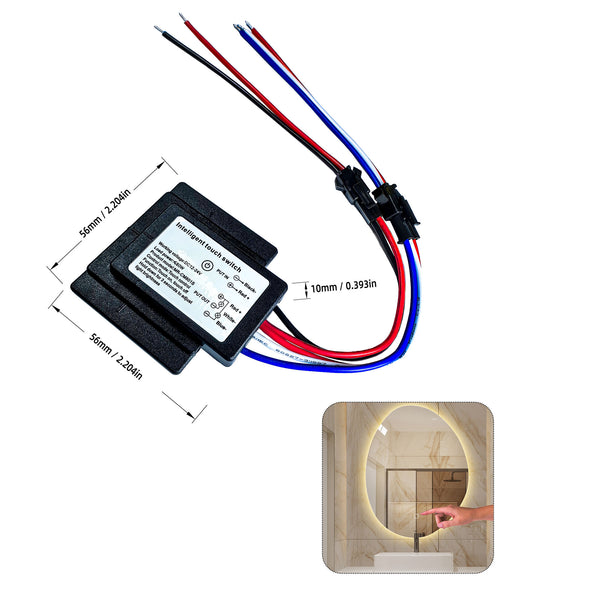

Dimensions: 56mm x 56mm x 10mm

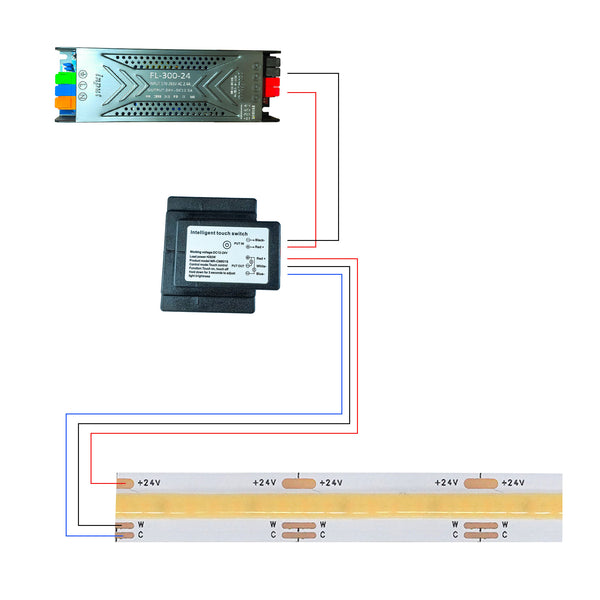

Wiring:
Inputs: Red (+), Black (-)
Outputs: Red (+), Blue (-), White (-)
Applications: Designed for backlit LED mirrors.

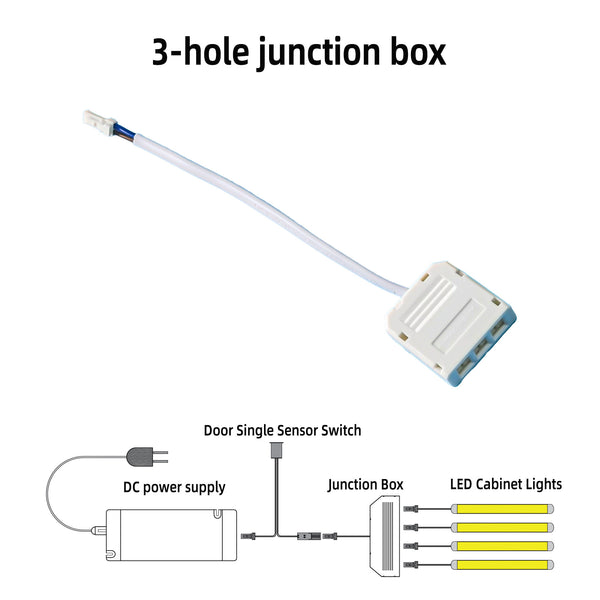

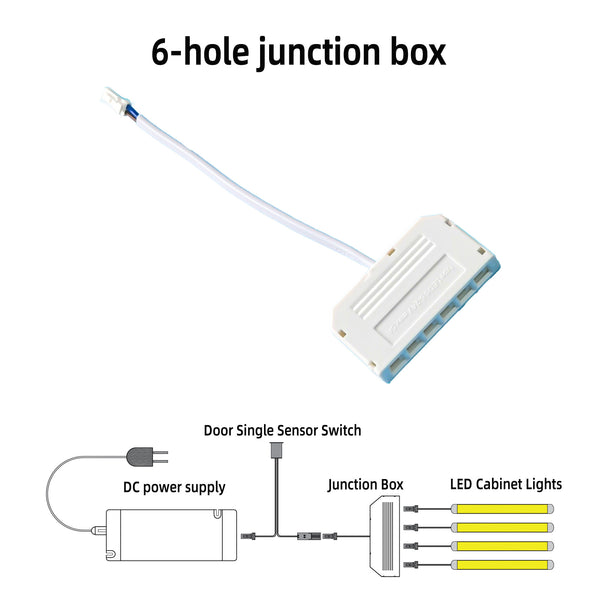

E. Junction Box/Splitter
Easily expand your lighting system without soldering.
Compatibility: Suitable for 12V-24V DC LED systems.
Connector Type: 2-pin DuPont connector.
Optional Models:
3-Hole Junction Box: 1 input, 3 outputs.
6-Hole Junction Box: 1 input, 6 outputs.

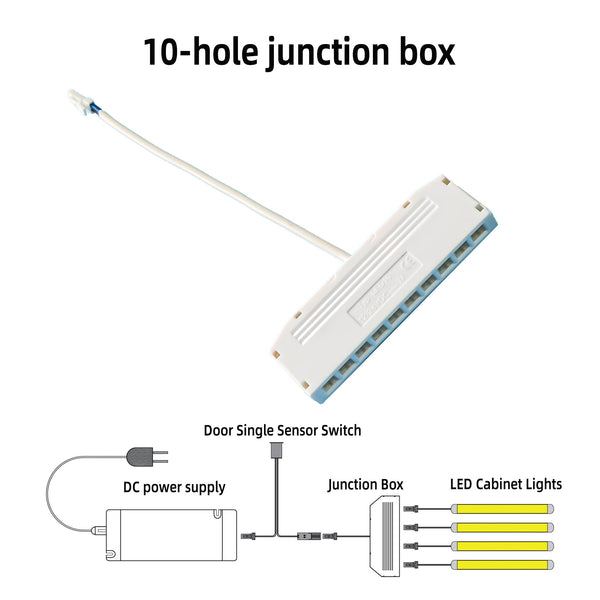

10-Hole Junction Box: 1 input, 10 outputs.
Features: Plug and play, secure connection, compact design.
🛠️ Installation Guide
Safety First: Ensure power is disconnected before installation.
Drilling: For embedded sensors, drill a 12mm diameter hole.

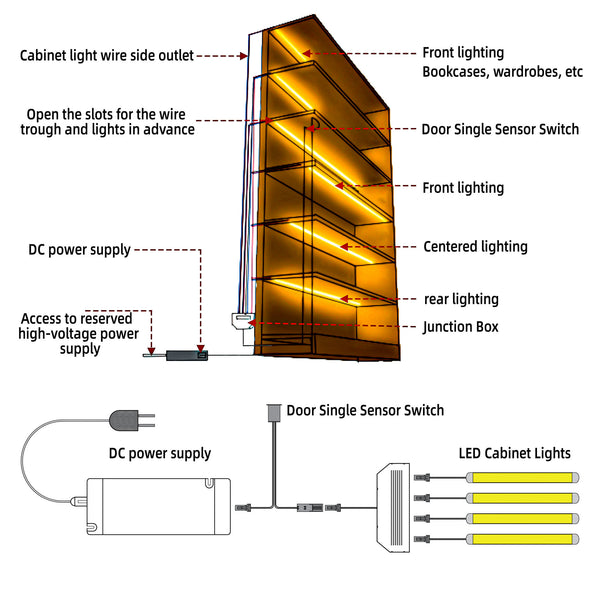

Connection:
Connect the power supply to the input (usually a female plug).
Connect the sensor/junction box to the power supply.
Connect the LED strip/round light to the output (usually a male plug).
Test: Power on and test the sensor's functionality.

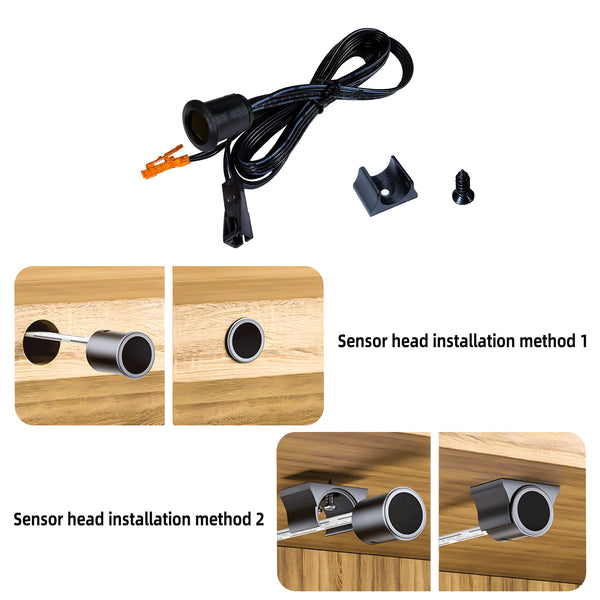

Mounting: Push the sensor into the hole, or surface mount using the included mounting clips/screws.
📦 Package List
Product: [Depending on your choice: Sensor Switch or Junction Box]
Quantity: [Depending on your choice: 1 to 20 pieces]
Accessories: Includes mounting clips and screws (for the sensor).
⚠️ Important Notes
Voltage Check: Ensure your LED matches the sensor's voltage (mostly 12V or 24V). Do not connect 110V/220V AC directly to these sensors.
Polarity: These connectors are polarized. If the light does not turn on, please check that the plug is inserted correctly. Load limit: Do not exceed the maximum power (60W on 12V / 100W-120W on 24V) to prevent overheating.
🚚 Shipping and Returns
Fast Shipping: We will ship within 3 days of receiving payment.
